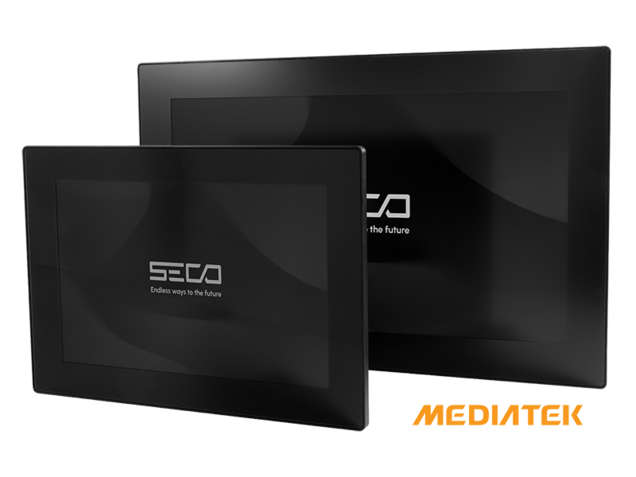

Modular Vision Genio700 and Modular Vision Genio510 (10.1 and 15.6) are scalable Arm-based industrial HMI platforms designed for edge AI, multimedia applications, and embedded user interfaces. Built on MediaTek Genio processors, they combine advanced multimedia capabilities, efficient local processing, and industrial-grade reliability. These platforms enable responsive user interfaces and on-device AI inference, with optimized performance-to-power efficiency across different deployment scenarios.

Modular-Vision-QCS6490

Edge AI-ready performance

Run AI inference directly on the device with integrated NPU acceleration, enabling real-time insights without cloud dependency.

Scalable compute architecture and sizes

Choose between MediaTek Genio 700 for higher AI and multimedia workloads or Genio 510 for optimized power and cost efficiency within the same platform. Both options are available in 10.1” and 15.6” formats.

Advanced multimedia and graphics for industrial HMIs

Smooth UI rendering, video playback, and interactive experiences for modern HMI applications and digital interface applications.

Industrial-ready design and integration

Rugged construction with IP66 front protection, broad connectivity, and flexible mounting options for simplified system integration.

Discover more

Built on MediaTek Genio processors, Modular Vision Genio700 & Modular Vision Genio510 bring AI acceleration, advanced multimedia, and efficient compute to edge HMI applications. Within the same platform, two compute tiers enable performance scaling depending on workload requirements. This dual-processor approach enables a clear performance ladder within a unified HMI design.

  MediaTek Genio 700MediaTek Genio 510
CPU2x Arm® Cortex®-A78 + 6x Arm® Cortex®-A552x Arm® Cortex®-A78 + 4x Arm® Cortex®-A55
GPUMali-G57 MC3 GPUMali-G57 MC2 GPU
NPUUp to 4 TOPS AI accelerationUp to 3.2 TOPS AI acceleration
Workload ProfileDesigned for AI-driven applications, advanced graphics and richer edge workloadsOptimized for power-efficient deployments and cost-sensitive designs
Available ConfigurationsModular Vision 10.1 Genio700
Modular Vision 15.6 Genio700		Modular Vision 10.1 Genio510
Modular Vision 15.6 Genio510
  View product View product

Modular Vision Genio700 and Modular Vision Genio510 provide a comprehensive set of industrial HMI interfaces to simplify integration into existing systems and architectures. All connectors are accessible from one side, enabling faster installation and cleaner system design.

Modular-Vision-Connectors

+9V ÷ +32V Power Supply

USB-A 3.0 / USB-C 2.0

RS232 + RS485

RJ45 1GB

CAN

8-pin Molex DIO

One Architecture, Multiple Sizes

Choose the display size that best fits your application while maintaining the same computing architecture, performance, and AI capabilities.

  10.1"15.6"
Resolution1280×8001920×1080
Brightness400 cd/m²400 cd/m²
Touch TechnologyP-Cap 3mmP-Cap 3mm
Backlight Lifetime50,000 h50,000 h
Dimensions270.1 × 187.1 × 51.7 mm407.5 × 259.5 × 52.4 mm

From industrial environments to smart buildings and healthcare, the Modular Vision Genio700 & Genio510 support a wide range of AI-driven HMI use cases.

Healthcare and medical systems

Healthcare and medical systems

Reliable interfaces for balanced clinical stations (Recommended: Modular Vision 15.6 Genio700)

Machinery automation

Machinery automation

Industrial HMIs form monitoring and control workflow (Recommended: Modular Vision 10.1 Genio700)

Coffee and Vending

Coffee and Vending Machines

Responsive HMIs for user interaction and service flows (Recommended: Modular Vision 10.1 Genio700 or Modular Vision 10.1 Genio510)

Transit depot operator terminals

Transit depot operator terminals

Efficient operator interfaces for daily operations (Recommended: Modular Vision 10.1 Genio700)

Digital signage

Digital signage and interactive kiosks

Smooth content rendering and touch interaction (Recommended: Modular Vision 15.6 Genio700)

Building management

Building management systems

Standard operator stations (Recommended: Modular Vision 10.1 Genio700)

Yocto Logo
Clea Logo

Modular Vision Genio700 & Modular Vision Genio510 are powered by Clea OS, SECO’s Yocto-based operating system designed to embed security, manageability and long-term reliability at the core of every device.

Built to meet modern industrial requirements and cybersecurity regulations such as the Cyber Resilience Act (CRA), Clea OS provides a hardened, production-ready architecture with support for secure boot chains, controlled OTA update mechanisms, system integrity enforcement, and long-term maintainability.

As part of the Clea ecosystem, it also enables advanced capabilities such as remote device management, application deployment and AI integration at the edge, supporting a seamless transition from first power-on to production rollout.

Explore Clea

Laptop-AppHub

The SECO Developer Center is your central hub for technical knowledge, offering clear documentation, step-by-step guides, and ready-to-use resources to get started with Modular Vision Genio700 & Modular Vision Genio510.

Whether you are bringing up the platform, configuring Clea OS, or validating your design, the Developer Center streamlines development through structured content, practical examples, and continuously updated materials.

Visit Developer Center

AppHub-Screenshot

The SECO Application Hub provides developers with ready-to-deploy applications designed to run directly on Modular Vision, enabling efficient use of hardware acceleration and faster deployment at the edge. Through the Application Hub, developers can leverage AI algorithms and integrate with Clea to deploy applications, distribute updates, monitor behavior in the field, and continuously optimize models across device fleets.

Visit Application Hub

cover-modular-vision-wp-Genio

Download our Whitepaper
