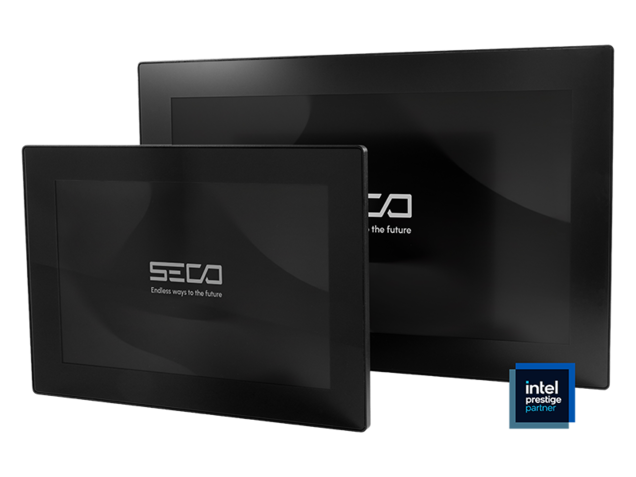

Modular Vision ASL (10.1 & 15.6) is a rugged and power-efficient HMI platform powered by Intel Atom® x7000RE Series processors, designed for next-generation x86-based edge HMI deployments. It combines scalable x86 performance with optimized power profiles, enabling responsive, reliable, and efficient operation across demanding industrial environments and high-performance HMI applications.

Modular-Vision-QCS6490

x86 performance for industrial HMIs

Intel Atom® x7000RE Series processors (Codename: Amston Lake) deliver reliable CPU performance and software compatibility for industrial and commercial applications.

Scalable form factors

Available in 10.1” and 15.6” to fit both standard operator interfaces and larger dashboard-style applications.

Ready for always-on operation

Designed for continuous use with stable performance across long-running sessions and multi-tasking workloads.

Industrial-ready design and integration

Rugged construction with IP66 front protection, broad connectivity, and flexible mounting options ensure seamless integration into real-world environments.

Discover more





Based on Intel Atom® x7000RE Series processors, Modular Vision ASL (10.1 & 15.6) provides a flexible x86 HMI platform designed for applications requiring software compatibility, high-end CPU performance, and reliable workload management over time.

Integrated Intel® UHD Graphics based on Intel® Xe architecture support rich, fluid user interfaces, while advanced features such as Time-Sensitive Networking (TSN) and Intel® Time Coordinated Computing (TCC) enable deterministic communication and precise workload execution.

This makes Modular Vision ASL a strong choice for high-end industrial HMI and edge computing applications based on x86 architectures.

Intel Atom® x7000RE Series processors

Up to 8 cores and turbo frequencies up to 3.6 GHz for responsive UI and multitasking

Integrated Intel® UHD Graphics

Smooth UI rendering and support for graphics-intensive HMI applications

Low-power profiles from 6W to 12W TDP

Energy-efficient operation for always-on and thermally constrained systems

Balanced high-end performance

Optimized for visualization, control logic, and data handling

Modular Vision ASL provides a comprehensive set of industrial HMI interfaces to simplify integration into existing systems and architectures. All connectors are accessible from one side, enabling faster installation and cleaner system design.

Modular-Vision-Connectors

+9V ÷ +32V Power Supply

USB-A 3.0 / USB-C 2.0

RS232 + RS485

RJ45 1GB

CAN

8-pin Molex DIO

Choose the display size that best fits your application while maintaining the same computing architecture, performance, and AI capabilities.

 10.1"15.6"
Resolution1280x8001920×1080
Brightness400 cd/m²400 cd/m²
Touch TechnologyP-Cap 3mmP-Cap 3mm
Backlight Lifetime50,000 h50,000 h
Dimensions270.1 × 187.1 × 51.7 mm407.5 × 259.5 × 52.4 mm
Datasheet Download Download

From industrial environments to smart buildings and healthcare, the Modular Vision ASL supports a wide range of AI-driven HMI use cases.

image-31120

Healthcare and medical systems

High CPU performance and x86 compatibility for reliable clinical workflows.

image-31119

Transit depot operator terminals

Supervision interfaces designed for heavier workloads and always-on operation.

image-31118

Machinery automation dashboards

Responsive visualization for industrial HMI dashboards and line monitoring.

image-31117

Interactive digital signage and kiosks

Smooth rendering and responsive touch for interactive HMI and kiosk applications.

Yocto Logo
Clea Logo

Modular Vision ASL is powered by Clea OS, SECO’s Yocto-based operating system designed to embed security, manageability and long-term reliability at the core of every device.

Built to meet modern industrial requirements and cybersecurity regulations such as the Cyber Resilience Act (CRA), Clea OS provides a hardened, production-ready architecture with support for secure boot chains, controlled OTA update mechanisms, system integrity enforcement, and long-term maintainability.

As part of the Clea ecosystem, it also enables advanced capabilities such as remote device management, application deployment and AI integration at the edge, supporting a seamless transition from first power-on to production rollout.

Explore Clea

Laptop-AppHub

The SECO Developer Center is your central hub for technical knowledge, offering clear documentation, step-by-step guides, and ready-to-use resources to get started with Modular Vision ASL.

Whether you are bringing up the platform, configuring Clea OS, or validating your design, the Developer Center streamlines development through structured content, practical examples, and continuously updated materials.

Visit Developer Center

AppHub-Screenshot

The SECO Application Hub provides developers with ready-to-deploy applications designed to run directly on Modular Vision, enabling efficient use of hardware acceleration and faster deployment at the edge. Through the Application Hub, developers can leverage AI algorithms and integrate with Clea to deploy applications, distribute updates, monitor behavior in the field, and continuously optimize models across device fleets.

Visit Application Hub

cover-modular-vision-wp-ASL

Download our Whitepaper
