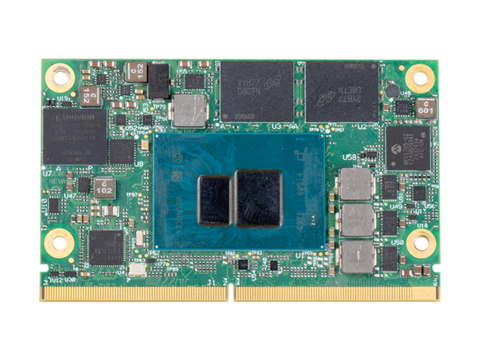

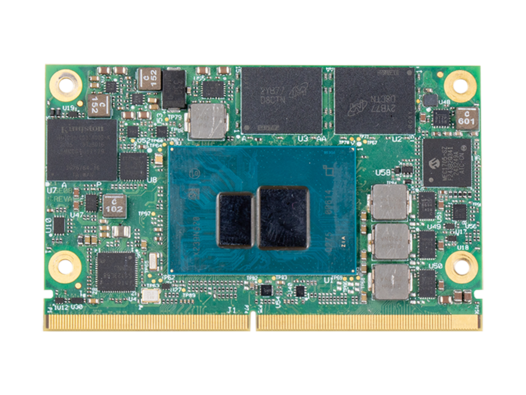

SOM SMARC

Intel® Atom® processors x7000E Series, Intel® Core™ i3 processor, Intel® Processors N Series

Up to 8 core

From 6W to 15W TDP up to 2.0GHz

View Product

SOM SMARC

Intel Atom® Processors x7000RE Series (Codename: Amston Lake)

Up to 8 core

From 6W to 12W TDP up to 2.0GHz

View Product

Energy efficiency that makes a difference.



From 6W to 15W TDP for exceptional performance with reduced power consumption.

High AI performance for visual processing and real-time inference

using-a-touchscreen

AI apps for SMARC ADL-N

Smart devices. AI implementation for facial recognition and voice control.

Digital Signage. Interactive advertising with user recognition and real-time content adaptation.

Security Systems. Advanced analysis for intrusion detection and monitoring of suspicious activities.

AI apps for SMARC ASL

Smart Surveillance. Real-time object detection and tracking.

Industrial Automation. Visual analysis for quality control and predictive maintenance.

Medical Devices. AI-assisted diagnostics for medical image analysis.

camera-surveillance

Memory

Up to 16GB of LPDDR5-4800 memory with In Band Error Correction Code (IBECC)

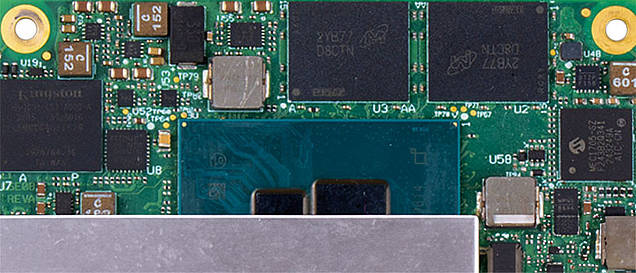

board-cropped-01

Up to 3 independent 4K displays, AVX-256, and VNNI for AI inference and media transcoding

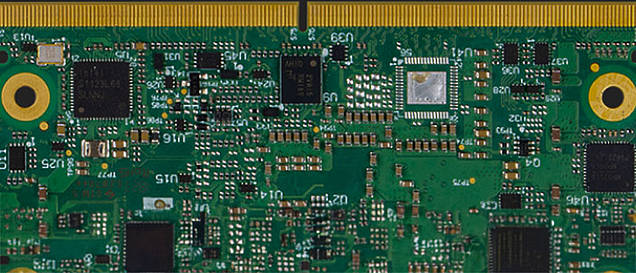

board-cropped-02
board-cropped-03

Communication Ports

  • 2x NBase-T
  • 2x USB 3.2 Gen2
  • 6x USB 2.0
  • 4x PCI-e Gen3 lanes with SERDES option

Industrial temperature

-40°C to +85°C





Operating system

Operating system

Turbo Speed - TDP 12W

100 %

SOM-SMARC-ASL Intel Atom® x7835RE Processor

3.6 GHz Turbo

100 %

SOM-SMARC-ADL-N Intel® Processor N97

3.6 GHz Turbo

5 %

SOM-SMARC-EHL Intel Atom® x6425RE Processor

(no Turbo)

80 %

SOM-SMARC-APL Intel Atom® x7-E3950 Processor

Burst 2.0 GHz

Clock Speed - TDP 12W

100 %

SOM-SMARC-ASL Intel Atom® x7835RE Processor

8 cores @1.3 GHz

80 %

SOM-SMARC-ADL-N Intel® Processor N97

4 cores @2.0 GHz

75 %

SOM-SMARC-EHL Intel Atom® x6425RE Processor

4 cores @1.9 GHz

66 %

SOM-SMARC-APL Intel Atom® x7-E3950 Processor

4 cores @1.6 GHz

Physical Cores - TDP 12W

100 %

SOM-SMARC-ASL Intel Atom® x7835RE Processor

8

50 %

SOM-SMARC-ADL-N Intel® Processor N97

4

50 %

SOM-SMARC-EHL Intel Atom® x6425RE Processor

4

50 %

SOM-SMARC-APL Intel Atom® x7-E3950 Processor

4

CPU Mark - TDP 12W

100 %

SOM-SMARC-ASL Intel Atom® x7835RE Processor

8710

80 %

SOM-SMARC-ADL-N Intel® Processor N97

5846

33 %

SOM-SMARC-EHL Intel Atom® x6425RE Processor

3011

25 %

SOM-SMARC-APL Intel Atom® x7-E3950 Processor

2112

SOM SMARC

R08-1632-2121-C2

SOM-SMARC-ADL-N with Intel Atom® Processor x700E Series (formerly Alder Lake-N)

CPU

Intel® Atom® x7425E Processor, 1.5 GHz-3.4 GHz, Cores 4, TDP 12W

Connectivity

2x Eth, LVDS + DP++ + DP++, w/o SERDES (PCIe: 4 x1 or 1 x2 + 2 x1), TPM SLB 9670 Q2.0 (CFG H0), SPI1 GP SPI

Graphics

Intel® UHD Graphics 1.00 GHz

Memory

8GB RAM d.c., 32GB eMMC

SOM SMARC

R08-4232-2121-C2

SOM-SMARC-ADL-N with Intel® Processors N Series (formerly Alder Lake-N)

CPU

Intel® Processor N50, 1.0 GHz-3.4 GHz,Cores 2, TDP 6W

Connectivity

2x Eth, LVDS + DP++ + DP++, w/o SERDES (PCIe: 4 x1 or 1 x2 + 2 x1), TPM SLB 9670 Q2.0 (CFG H0), SPI1 GP SPI

Graphics

Intel® UHD Graphics 750 MHz

Memory

4GB RAM s.c., 32GB eMMC

SOM SMARC

R08-6842-2121-C2

SOM-SMARC-ADL-N with Intel® Core™ i3 Processors (formerly Alder Lake-N)

CPU

Intel® Core i3 N305 Processor, 1.0/1.8 GHz-3.8 GHz, Cores 8, TDP 9/15W

Connectivity

2x Eth, LVDS + DP++ + DP++, w/o SERDES (PCIe: 4 x1 or 1 x2 + 2 x1), TPM SLB 9670 Q2.0 (CFG H0), SPI1 GP SPI

Graphics

Intel® UHD Graphics 1.25 GHz

Memory

16GB RAM d.c., 64GB eMMC

SOM SMARC

RE08-B232-2121-I2

SOM-SMARC-ASL with Intel Atom® x7000RE Processor Series (formerly Amston Lake)

CPU

Intel® Atom x7213RE Processor, 2.0 GHz-3.4 GHz, Cores 2, TDP 9W

Connectivity

2x Eth, LVDS + DP++ + DP++, w/o SERDES (PCIe: 4 x1 or 1 x2 + 2 x1), TPM SLB 9670 Q2.0 (CFG H0), SPI1 GP SPI

Graphics

Intel® UHD Graphics 1.00 GHz

Memory

4GB RAM s.c., 32GB eMMC

SOM SMARC

RE08-C232-2121-I2

SOM-SMARC-ASL with Intel Atom® x7000RE Processor Series (formerly Amston Lake)

CPU

Intel® Atom x7433RE Processor, 1.5 GHz-3.4 GHz, Cores 4, TDP 9W

Connectivity

2x Eth, LVDS + DP++ + DP++, w/o SERDES (PCIe: 4 x1 or 1 x2 + 2 x1), TPM SLB 9670 Q2.0 (CFG H0), SPI1 GP SPI

Graphics

Intel® UHD Graphics 1.00 GHz

Memory

32GB eMMC, x2Eth

SOM SMARC

RE08-D632-2122-I2

SOM-SMARC-ASL with Intel Atom® x7000RE Processor Series (formerly Amston Lake)

CPU

Intel® Atom® x7835RE Processor, 1.3 GHz-3.6 GHz, Cores 8, TDP 12W

Connectivity

2x Eth, LVDS + DP++ + DP++, w/o SERDES (PCIe: 4 x1 or 1 x2 + 2 x1), TPM SLB 9670 Q2.0 (CFG H0), eSPI

Graphics

Intel® UHD Graphics 1.20 GHz

Memory

8GB RAM d.c., 64GB eMMC
